Pegas Raid

Pegas

Raid 4x4

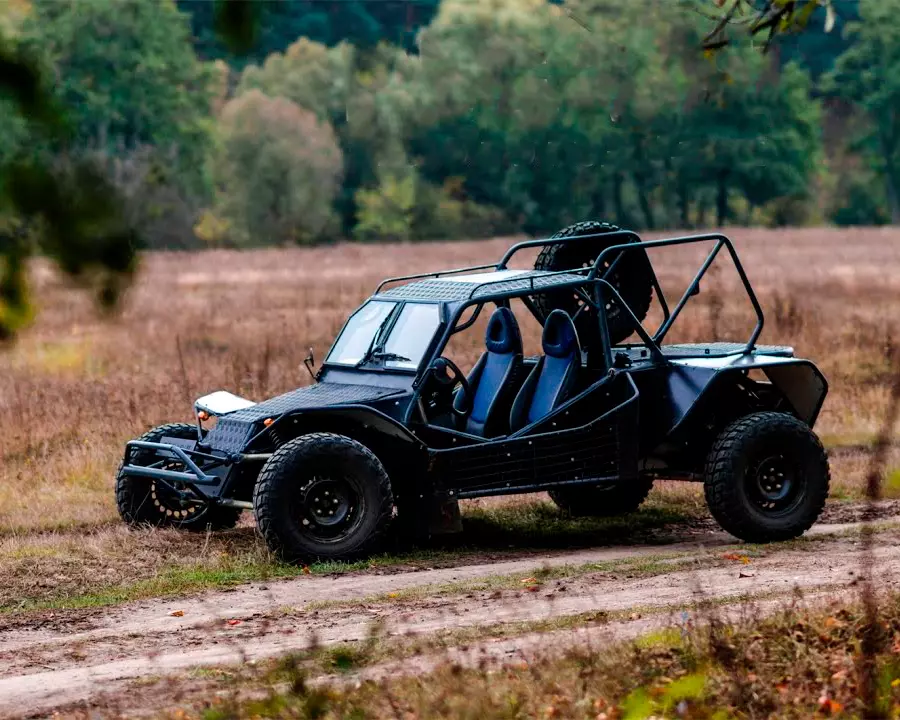

The design of the car was developed specifically for operation in harsh off-road conditions, taking into account the peculiarities of the climate of Ukraine. Therefore, the buggy has a moisture-proof cabin with a windshield blowing system and a powerful independent heater. The windshield is foldable, the doors have a vertical opening mechanism and can be easily dismantled if necessary.

Fully independent spring suspension is able to withstand significant loads and ensure body stability and cross-country speed.

All-wheel drive. The key elements of the transmission are reinforced with mechanisms made of high-alloy steel, which ensures performance under heavy loads.The multi-disk metal-ceramic clutch provides a high degree of wear resistance, which is especially important in conditions of intensive operation and high loads.

The diesel engine has a reliable fuel system. The crankcase is treated with a special metal-polymer coating for additional protection of mechanisms from overheating.

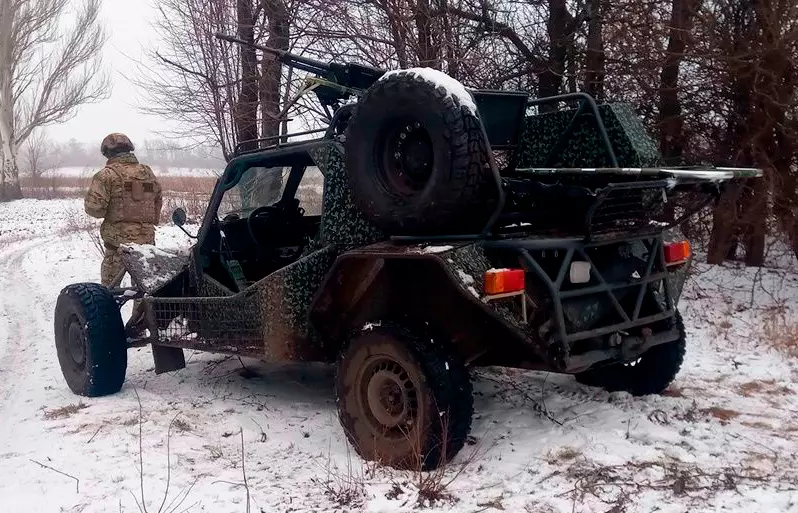

Evacuation Missions

For military units, an evacuation support scheme has been developed taking into account the NATO Joint Combined Doctrine on Medical Evacuation. Currently, first aid is provided on the battlefield within 10 minutes - the so-called "platinum minute". Medical evacuation of the wounded from the battlefield is usually carried out by armored or light medical evacuation transport to collection points for the wounded or "stabilization points", where they are provided with emergency medical care. Correct and timely evacuation of the wounded is the guarantee of his chances of life and full recovery. It is important to provide first aid in the first "golden ten minutes". Therefore, the tow truck team must work quickly and harmoniously.

The evacuation scheme very acutely raises the question of providing military transport that is capable of working in off-road conditions. Using the Pegasus Light Tactical Vehicle for Advanced Medical Evacuation can speed up rescue operation times. To carry out special rescue operations, the car crew can consist of 2 to 3 people, in particular: the commander of the car - a medical instructor, a mechanic-driver-medical officer, a gunner for fire support of a rescue operation. Special equipment for moving stretchers to the roof of the car is installed for loading and unloading the wounded.

The car is equipped with equipment for loading/unloading the wounded, an electric winch for pulling out the wounded, folding stretchers, an oxygen inhaler, a set of immobilization tires, dressings and medicines.

Evacuation Missions

The doctrine of medical evacuation of the wounded, according to NATO standards, raises the issue of providing military vehicles capable of operating in off-road conditions very acutely.

Using the Pegasus Light Tactical Vehicle for Advanced Medical Evacuation can speed up rescue operation times. Special equipment for moving stretchers to the roof of the car is installed for loading and unloading the wounded.

The car is equipped with equipment for loading/unloading the wounded, an electric winch for pulling out the wounded, folding stretchers, an oxygen inhaler, a set of immobilization tires, dressings and medicines.

Tech

Characteristics

Engine, transmission

Engine

Diesel turbocharged
Engine capacity: 2.0 l

Wrapping moment

400 Nm

Power

200 hp

Max speed

130 km/h (recomended)
80 mph

Wheel drive

4x2 Rear wheel drive
4x4 All wheel dride

Fuel tank capacity

70 l
18,5 gal

Transmission

6-speed mechanical gearbox, metal-ceramic multi-disc clutch

Distance

560 km off-road&highway
348 ml

Frame, suspension, steering

Dimensions

Length 4.2 m, 13.8 ft
Width 2.12 m, 6.9 ft
Height 1.8 m, 5.9 ft

Suspension stroke

Front 315 mm, 12,4 in
Rear 315 mm, 12.4 in

Tires and rims

235/75 R16 J7

Towed weight

750 kg
1653 lb

Grade of steel frame

High-grade unalloyed steel 20 (UA)
1020 (US), 1.1151/C22 (EU)

Wheelbase

2800 mm
9.19 ft

Steering

Electro

Windscreen

Hinged, blowed, cleaners
Antiglare - optional

Weight

Dry 1350 kg, 2976 lb
Full 2430 kg, 5357 lb

Wheel track

1860 mm
73.22 in

Clearance

370 mm
14.6 in

Lighting

LED headlights, stops, turns, dimensions

Load capacity

500 kg, 1102 lb luggage
950 kg, 2094 lb total

Engine placement

Behind

Doors

Top opening, removable

Number of seats

2 in the cabin
2 outside

Equipment

Weapon mounting

Turret or mount for a machine gun, grenade launcher or other weapons

Winch, pulling force

3000 kg
6614 lb

Tracks

Optional
Front 762 mm, 30 in
Rear 1016 mm, 40 in

Night vision

Infrared with a monitor for the driver

Spare wheels

2 pcs

Inverter

220V, 110V, 24V
Optional

Heater

Autonomous 2 kW

Radio

Motorola MotoTRBO DM4601/DM4600 45W, optional

Stretcher

Folding, optional

First aid kit

Immobilization splints, dressing materials and medicines

Tools

Jack and tool box

IR lights

Rear "Follow me" and stops
Optional

Engine, transmission

Engine

Diesel turbocharged
Engine capacity: 2.0 l

Wrapping moment

400 Nm

Power

200 hp

Max speed

130 km/h (recomended)
80 mph

Wheel drive

4x2 Rear WD
4x4 All WD

Fuel tank capacity

70 l
18,5 gal

Transmission

6-speed mechanical gearbox, metal-ceramic multi-disc clutch

Distance

560 km off-road & highway
348 ml

Frame, suspension, steering

Dimensions

Length 4.2 m, 13.8 ft
Width 2.12 m, 6.9 ft
Height 1.8 m, 5.9 ft

Suspension stroke

Front 315 mm, 12,4 in
Rear 315 mm, 12.4 in

Tires and rims

235/75 R16 J7

Towed weight

750 kg
1653 lb

Grade of steel frame

High-grade unalloyed steel 20 (UK), 1020 (US), 1.1151/C22 (EU)

Wheel base

2800 mm
9.19 ft

Steering

Electro

Windscreen

Hinged, blowed, cleaners
Antiglare - optional

Weight

Dry 1350 kg, 2976 lb
Full 2430 kg, 5357 lb

Wheel track

1860 mm
73.22 in

Engine placement

Behind

Lighting

LED headlights, stops, turns, dimensions

Load capacity

500 kg, 1102 lb luggage
950 kg, 2094 lb total

Clearance

370 mm
14.6 in

Doors

Top opening, removable

Number of seats

2 in the cabin
2 outside

Equipment

Weapon mounting

Turret or mount for a machine gun, grenade launcher or other weapons

Winch, pulling force

3000 kg
6614 lb

Radio

Optional, digital Motorola Moto TRBO DM4601/DM4600 45W

Night vision

Infrared with a monitor for the driver

Spare wheels

2 pcs

Tracks

Optional
Front 762 mm, 30 in
Rear 1016 mm, 40 in

Heater

Autonomous 2 kW

Tools

Jack and tool box

First aid kit

Immobilization splints, dressing materials and medicines

Stretcher

Folding, optional

Inverter

220V, 110V, 24V
Optional

IR lights

Rear "Follow me" and stops
Optional

Технічні характеристики

Двигун

Тип: Дизель з турбонадувом
Об'єм двигуна: 2,0 л
Потужність двигуна: 200 кс

Колісний привід

4x2 базова комплектація
4x4 опціонально

Обертаючий момент

350 Нм

Макс. швидкість

130 км/г

Суха маса

1000 kg

Кліринс

400 мм

Трансмісія

5-ступінчаста, механічна,
високошвидкісна, повністю
синхронізована

Об'єм паливного бака

70 л

Габарити

Довжина 4.0 м
Ширина 2.12 м
Висота 1.8 м

Колія

2000 мм

Запас ходу

800 км

Вантажопідйомність

500 кг
